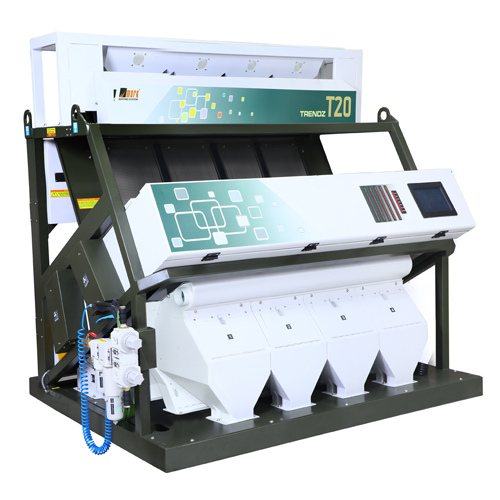

Product Description
Product Features of Dry Grapes Color Sorter Machine
Mark Color Sorter is designed to provide a superior performance and reliability, allowing you to avoid annoying maintenance which would effect your production. Mark Color sorter is a complete system that incorporates advanced engineering concepts.
Tri Chromatic Camera Scanner
- High Speed data acquisition and digital image
- Processing Technology Using FPGA
- Resolution - 5400 X 3 pixels with RGB Trichromatic Camera Technology
- Highly Specialized lens for sorting purpose
- Front and back evenly aligned cameras with digital alignment technology
10'' Inch Color HMI
- Low Energy consumption led lighting
- Improves fine RGB Illumination in background
- Enhancing defects recognition systems by varying different backgrounds for different types of grains
Specifications of Dry Grapes Color Sorter Machine:-
| Chute Option Available |
12 Chute |
10 Chute |
8 Chute |
7 Chute |
6 Chute |
5 Chute |
4 Chute |
3 Chute |
2 Chute |
1 Chute |
| Chute Distribution (P+S+F) |
7+3+2
or
7+2+2+1
|
6+2+2
or
6+2+1+1
|
5+2+1
or
4+2+1+1)
|
4+2+1
or
4+2+(40+21)
|
4+1+1
or
4+2+(40+21)
|
3+1+1
or
3+1+(40+21)
|
2+1+1
or
2+1+(40+21)
|
2+1
or
2+(40+21)
|
1+1
or
1+(40+21)
|
- |
| Output (TPH) for Rice/Dal |
7 to 9 |
6 to 8 |
5 to 7 |
4 to 6 |
3.5 to 4.5 |
3 to 5 |
2 to 4 |
1.5 to 2.5 |
1 to 2 |
0.75 to 1.5 |
| No.of.camera (F&R) |
12+12 |
10+10 |
8+8 |
7+7 |
6+6 |
5+5 |
4+4 |
3+3 |
2+2 |
1+1 |
| Air@7.5kg/Cm2 |
230 CFM |
180 CFM |
160 CFM |
140 CFM |
115 CFM |
96 CFM |
72 CFM |
54 CFM |
44 CFM |
28 CFM |
| Compressor Requirement |
50 HP Screw |
40 HP Screw |
35 HP Screw |
35 HP Screw |
30 HP Screw |
25 HP Screw |
20 HP Screw |
15 HP Screw |
10 HP Screw |
10 HP Screw |
| Dimension (LXWXH) feet |
16x4.88x5.97 |
13.83x4.88x5.97 |
10.87x4.88x5.97 |
9.73x4.88x5.97 |
8.59x4.88x5.97 |
7.46x4.88x5.97 |
6.33x4.88x5.97 |
5.19x4.88x5.97 |
4.1x4.88x5.97 |
2.92x4.88x5.97 |
| Cabin Dimension Feet (LXWXH) |
20x10x8 |
18x10x8 |
16x10x8 |
14x10x8 |
13x10x8 |
12x10x8 |
10x10x8 |
9x10x8 |
8x10x8 |
7x10x8 |
Advanced Sorting PrecisionUtilizing full-color, high-resolution CCD cameras and LED illumination, the machine can accurately detect and separate defective or discolored dry grapes, ensuring top-quality produce with minimal wastage. The integrated vibration feeding system ensures even distribution and optimal sorting efficiency, making it ideal for commercial use.
User-Friendly OperationThis sorter is operated via a touch screen panel and a 10-inch LCD display, allowing for intuitive controls and easy monitoring of the sorting process. Users can quickly adjust settings for different batches, ensuring flexibility and minimal downtime during operations.
Robust and Hygienic ConstructionConstructed from high-grade stainless steel 304, the machine offers strength and resistance to corrosion, meeting food safety standards required in the industry. Its design facilitates easy cleaning and maintenance, prolonging its operational life and maintaining hygiene.
FAQ's of Dry Grapes Color Sorter Machine:
Q: How does the Dry Grapes Color Sorter Machine achieve high sorting accuracy?
A: The machine employs full-color, high-resolution CCD cameras combined with LED lighting to precisely distinguish between acceptable and defective dry grapes. This advanced imaging technology, along with the vibration feeding system, enables the sorter to achieve 99% accuracy with a reject rate of less than 0.1%.
Q: What is the process for operating the Dry Grapes Color Sorter Machine?
A: Operation involves feeding dry grapes into the machine via the vibration feeding system, setting sorting parameters on the touch screen panel, and monitoring performance through the 10-inch LCD display. The external air compressor supplies the necessary air pressure for rejecting undesired pieces, while sorted products are collected separately.
Q: When should I use the Dry Grapes Color Sorter Machine?
A: This machine is best utilized during commercial processing of dry grapes or similar dried fruits to ensure consistent product quality, reduce manual labor, and boost productivity. It is designed for continuous, high-volume operations, making it suitable for exporters, manufacturers, and suppliers.
Q: Where can the Dry Grapes Color Sorter Machine be installed?
A: The machine is suitable for installation in commercial production facilities, food processing plants, and export units. Due to its robust build and stainless steel construction, it can function effectively in industrial environments that require strict hygiene and efficient processing.
Q: What are the key benefits of using this color sorter for dried fruits?
A: The main advantages include increased sorting efficiency, minimal product loss, reduced labor costs, and enhanced product quality. Its accuracy and high throughput (up to 1500 kg/hr) ensure large volumes are processed quickly, making it invaluable for high-demand operations.
Q: How is the feeding system designed for optimal performance?
A: A vibration-based feeding system ensures even and controlled delivery of dry grapes to the sorting channels, preventing clogging and maximizing the machine's sorting accuracy and throughput.
